Ftth Optical Passive Node 1550nm Micro Mini Receiver

  • 1
  • 2
  • 3

Brand Name : TOPULINK

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000

Delivery Time : 3-5Days

Packaging Details : new in the box.

Product name : 1550nm micro mini receiver

Warranty : 1year

Optical Connector : SC/APC SC/UPC

Application : FTTH FTTB FTTX Network

input power range : -15~+2dbm

Wavelength : 1310/1550nm

Contact Now

1.No Power required

2.Work bandwidth 45~862MHz

3.Output Level=68d BμV (Pin=-1dBm)

4.OR101:CATV operating wavelength 1100~1620nm.

5.OR101-W: built-in 1310/1490nm filter,suitable for single-fiber triple wavelength system,CATV Operating wavelength 1550nm.

TECHNICAL INDEX

Optic feature Unit Index Supplement

CATV

Work wavelength

 (nm) 1310+1490&1310+1490+1550
Channel Isolation (dB) ≥40 1550nm & 1490nm
Responsibitity (A/W) ≥0.85 1310nm
≥0.9 1550nm
Receiving power (dBm) +2~-14 Digital TV (MER>29dB)
Optical return loss (dB) ≥55
optical connector SC/APC
RF Feature

Female-F

Male-F
Work bandwidth (MHz) 45~1050
Output level (dBμV) >68 Digital TV (Pin=-1dBm)
Return loss (dB) ≥14 47~862MHz
Output impedance (Ω) 75
Output port number 1
RF tie-in F-Female
OMI (%) 4.3

BER <1.0E-9 Pin:+2~-14dBm
Work temp (c) -20~+55
Storage temp (c) -40~85

Work

relative temp

 (%) 5~95

Size (L)×(W)×(H) (mm) 45×12×8 OR101(normal)
Size (L)×(W)×(H) (mm 45×12×8 OR101-15(with fiter)

Ftth Optical Passive Node 1550nm Micro Mini Receiver


Product Tags:

1550nm EDFA Amplifier



Mini EDFA Amplifier



Micro EDFA Amplifier

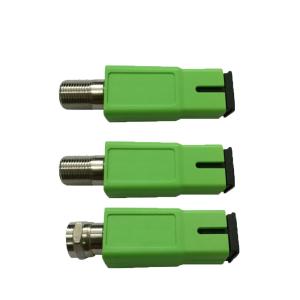

Wholesale Ftth Optical Passive Node 1550nm Micro Mini Receiver from china suppliers
